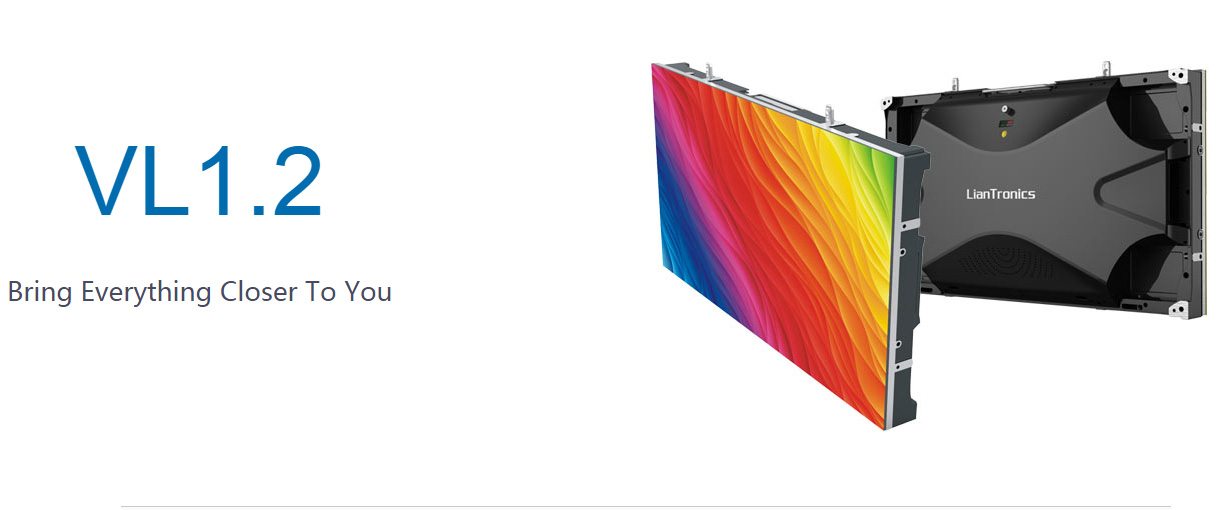

LED P.1.2 indoor

Product Info

FEATURES

Small pixel pitch LED screen

- Pixel pitch: 1.2 mm

- Pixel configuration: SMD

- Brightness: 600 adjustable

- Refresh rate: 1920/2880/3840 Hz

- Panel dimension: 650×365×88 mm

Only 7.8kg for each panel

Light weight less than 7.8kg for each panel.

Low Cost of Splicing

With a perfect panel ratio of 16:9, LianTronics HD LED display could be easily spliced in consistent with frequently-used video proportion of 4:3 or 16:9, which could greatly reduce the splicing cost under the dual conditions of prescribed signal source and certain scene.

Support for Front Installation and Maintenance

Module, power supply, receiving card,conversion card, and cables between panels could all be maintained from the front. Additionally, the specially-designed panel could be installed from front as well, which makes it more adaptive to the condition with limited space.

Support for gap minitrim

The low-cost connecting mechanism could eliminate dark or bright lines between panels effectively and cause no worry of assembly efficiency for the engineers any more.

V-Smooth Technology

LianTronics is the first to own CNC machine lines and workshop in the industry around China. Therefore,each panel could be guaranteed to adopt qualified mold processing to reduce the error in an infinite approach to zero.

Perfect Display Effect

160°super wide horizontal and vertical viewing angle covers more potential customers.The broadcasting pictures are stable with no scanning line, and the edge of image is sharp and clear when dealing with dynamic pictures.

Stable Operation

V-stable power supply technology and N+1 backup mode could guarantee no blackout during use.

Safe Operation

With hot double backup for Signal,stable broadcasting would be guaranteed when failure happens.Anti-hacking Encryption could avoid malicious signal cut-off and input.

SPECS

Item	Value
Pixel Configuration	SMD LED
Pixel Pitch(inch)	0.05
Pixel Pitch(mm)	1.2
Pixel Density(pixels/㎡)	621521
Panel Size（inch）	25.6 (W)×14.4 (H)×3.5(D)
Panel Size (mm)	650 (W)×365 (H)×88(D)
Panel Resolution（W×H）	512×288
Panel Material	Die - casting aluminum
Weight（kg/pcs）	7.8
White balance brightness(nits)	600
*Max. Power Consumption（W/㎡）	660
*Avg. Power Consumption（W/㎡）	165
Serviceability	Front/Rear
Viewing Angle（deg.）	160(H)/160(V)
Refresh Rate（Hz）	1920/2880/3840
Gray Level（Bit）	12/14/16
Contrast Ratio	8000:1
Color Temperature（K）	2000≤ TC≤ 10000 adjustable
Brightness Adjustment	Programmable/auto/manual
Color Calibration	Brightness and chroma calibration
Others	Communication - level power supply, hot double backup, temperature and humidity test, multi - signal input support, etc.
*Notes: Specifications are slightly different according to different configurations. Please contact our salesperson for detail
