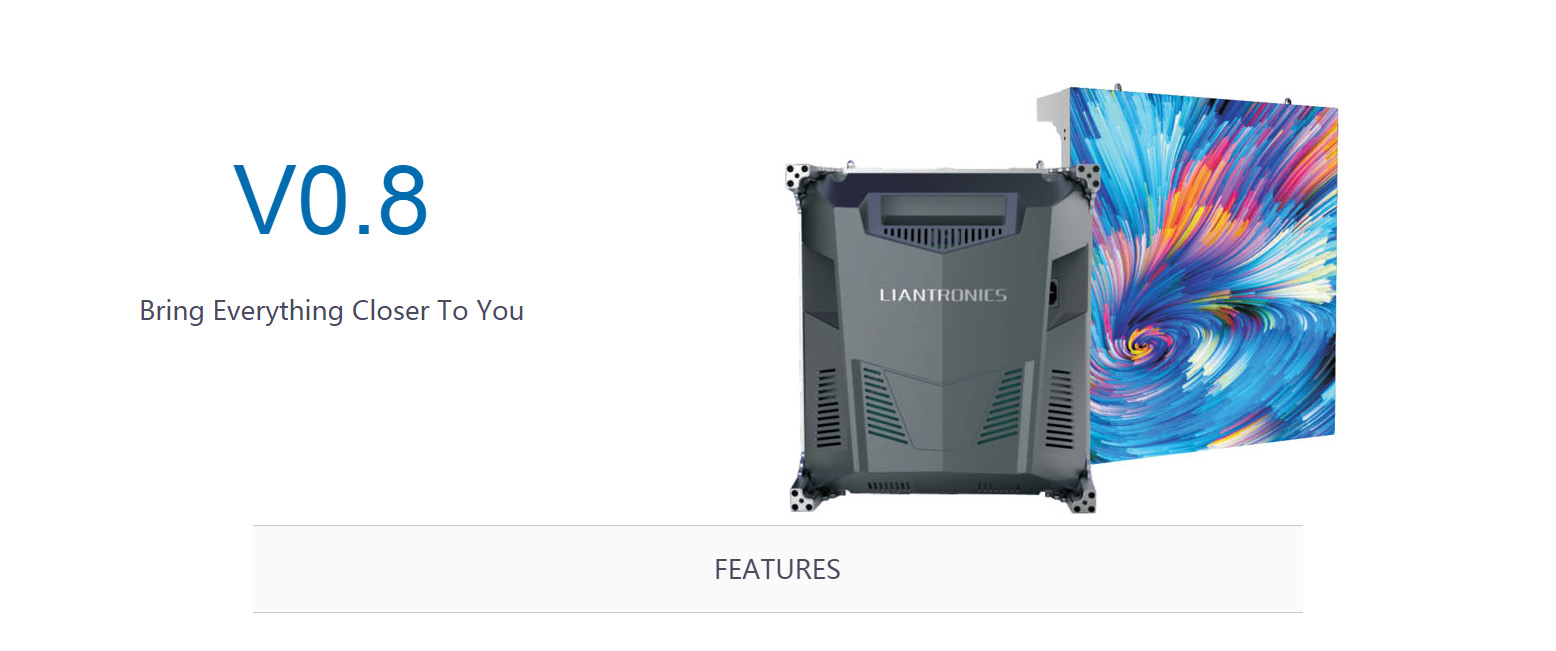

LED P.0.8 Indoor

Product Info

Small Pixel Pitch LED Screen

- Pixel Pitch: 0.8 mm

- Pixel Configuration: SMD

- Brightness: 600 adjustable

- Refresh Rate: 1920/2880/3840 Hz

- Serviceability: Front/Rear

Super High Refresh Rate

The high-end broadcasting system of LianTronics supports for high refresh rate output. And drive and decoding quick response help to get rid of ghost. The broadcasting pictures are stable with no scanning line, and the edge of image is sharp and clear when dealing with dynamic pictures, all of which can present the original picture information truly and accurately.

High Frame Rate with Nanosecond Response Time

The nanosecond technology can eliminate tailing and ghosting phenomenon existing in LCD and projector when processing the fast dynamic picture, which makes fine-pitch LED video wall an ideal choice for surveillance and motion picture broadcasting.

SPWM Technology

SPWM technology which can ensure no loss of gray level at high brightness and low brightness has solved the technical problem of gray level loss in the process of brightness adjustment. Meantime, the delicate and vivid picture makes it competitive among the peers.

V-Smooth Technology

LianTronics is the first to own CNC machine lines and workshop in the industry around China. Therefore,each panel could be guaranteed to adopt qualified mold processing to reduce the error in an infinite approach to zero.

Perfect Display Effect

160°super wide horizontal and vertical viewing angle covers more potential customers.The broadcasting pictures are stable with no scanning line, and the edge of image is sharp and clear when dealing with dynamic pictures.

table Operation

V-stable power supply technology and N+1 backup mode could guarantee no blackout during use.

Safe Operation

With hot double backup for Signal,stable broadcasting would be guaranteed when failure happens. Anti-hacking Encryption could avoid malicious signal cut-off and input.

SPECS

Item	Value
Pixel configuration	SMD LED
Pixel pitch	0.031
Pixel Pitch(mm)	0.8
Pixel density(pixels/㎡)	1229083
Panel size(inch)	12.8(W)×14.4(H)×3.5(D)
Panel Size (mm)	325(W)×365 (H)×88(D)
Panel Resolution（W×H）	360×405
Panel Material	Die - casting aluminum
Weight（kg/pcs）	4.5
White balance brightness(nits)	600
*Max. Power Consumption（W/㎡）	790
*Avg. Power Consumption（W/㎡）	263
Serviceability	Front/Rear
Viewing Angle（deg.）	160(H)/160(V)
Refresh Rate（Hz）	1920/2880/3840
Gray Level（Bit）	12/14/16
Contrast Ratio	8000:1
Color Temperature（K）	2000≤ TC≤ 10000 adjustable
Brightness Adjustment	Programmable/auto/manual
Color Calibration	Brightness and chroma calibration
Others	Communication - level power supply, hot double backup, temperature and humidity test, multi - signal input support, etc.
*Notes: Specifications are slightly different according to different configurations. Please contact our salesperson for details. All rights are reserved to LianTronics
